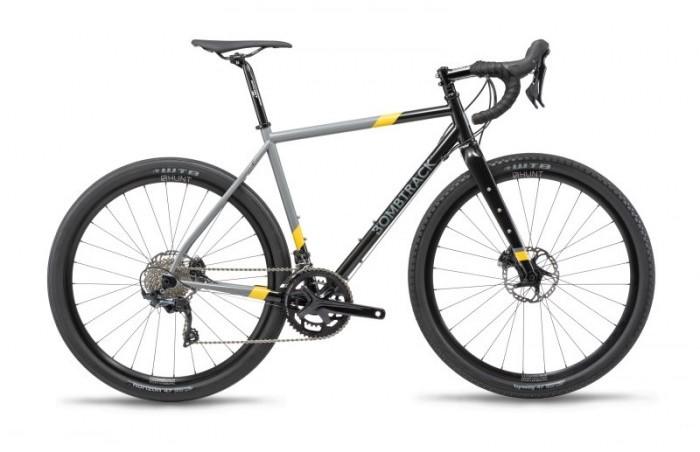

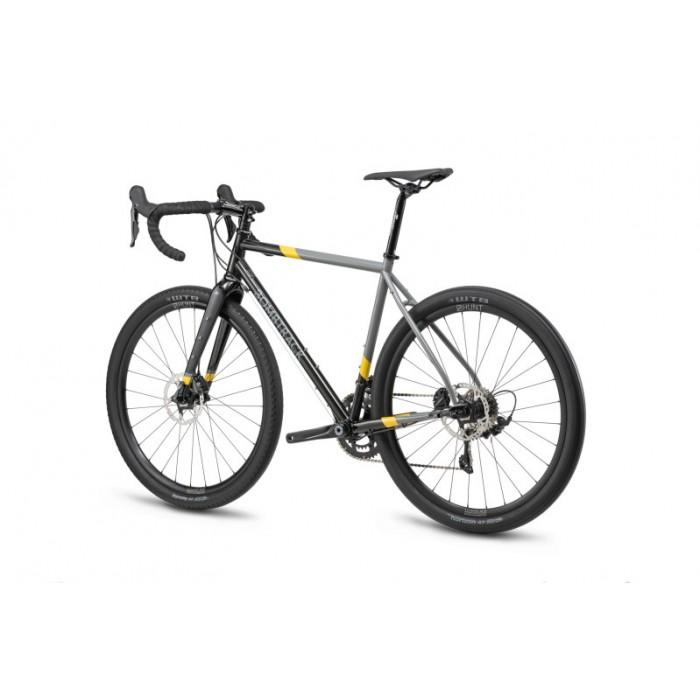

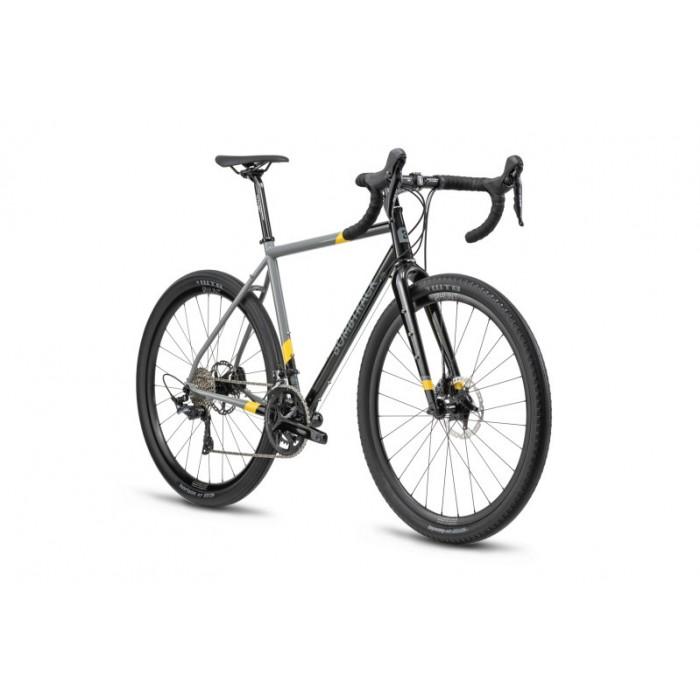

Bombtrack Audax Road Bike 2019

The original Audax heads upmarket for this year. Shimano's latest hydraulic 105 groupset takes care of both braking and shifting duties. This is boosted by an uprated Ultegra clutch derailleur which ensures chain retention on the roughest roads, while an FSA sub-compact crankset helps conquer the steepest hills. Hunt provides the wheels and Ritchey complete the picture with handlebars, stem, and seatpost. In common with many of our bikes, the Audax also changes to the durable T47 bottom bracket standard – suiting its punchy steel chassis perfectly.

Frame:	COLUMBUS CROMOR double butted tubing, tapered head tube, TA dropouts, replaceable hanger, 86 mm T47 shell

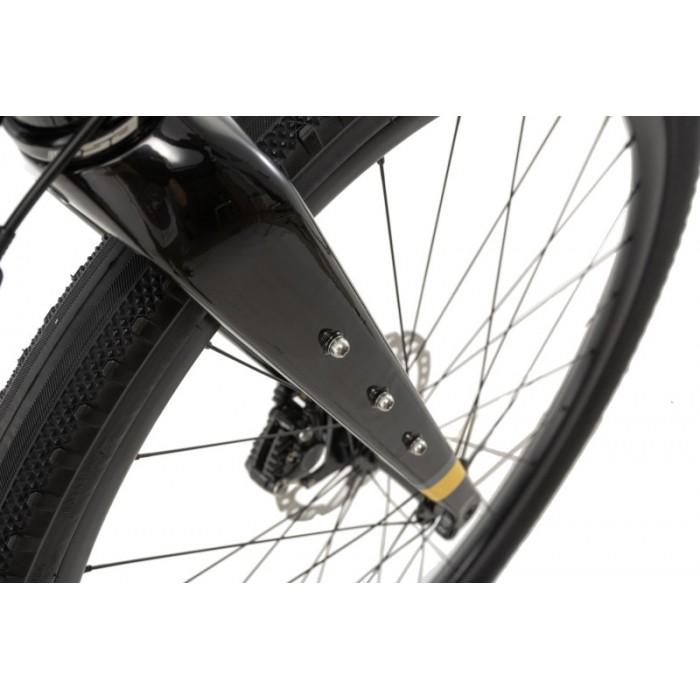

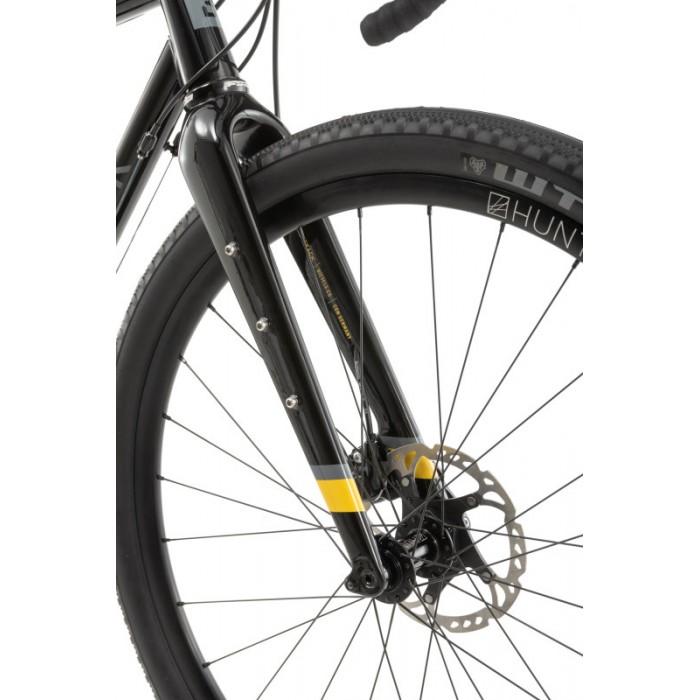

Fork:	BOMBTRACK EXT full carbon disc fork, TA, 1.1/2'' - 1.1/8'' tapered steerer, with fender / triple cage mounts

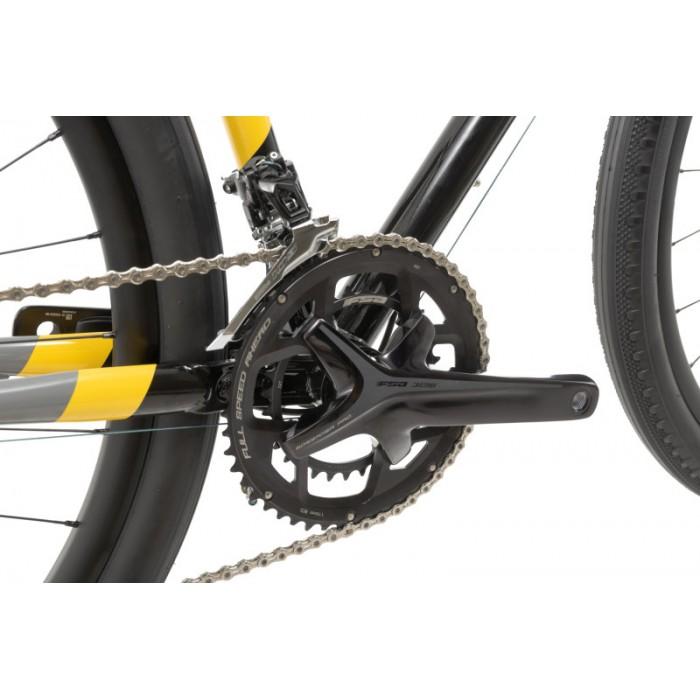

Crankset:	FSA GOSSAMER PRO 386EVO alloy crank
Shifters:	SHIMANO 105 ST-R7020 STI 2 x 11
Headset:	FSA NO.21/12/44 sealed external aheadset, 1.1/2'' - 1.1/8''
Wheelset:	HUNT ADVENTURE SPORT double wall asymmetric rim, TLC, i20, 28h

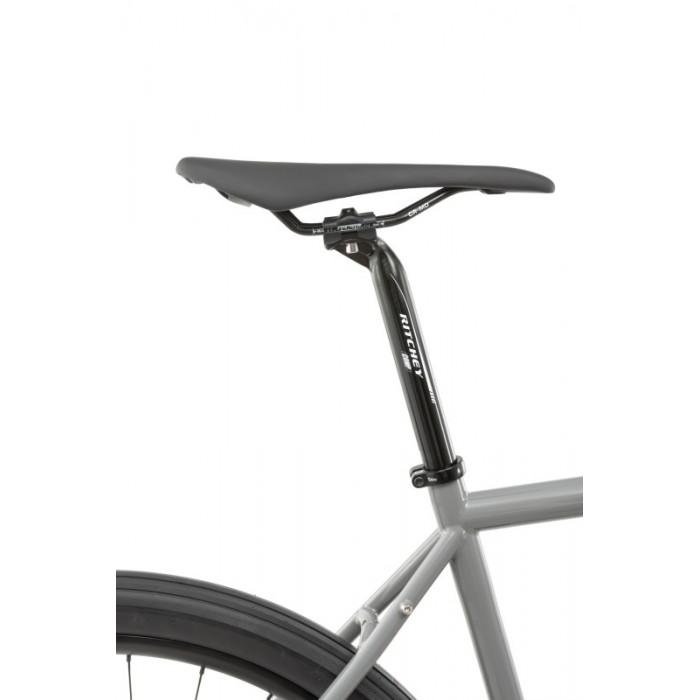

Seatpost:	RITCHEY COMP 2-BOLT alloy seatpost 27.2 mm x 400 mm

Stem:	RITCHEY COMP 4-AXIS forged alloy stem, -6°

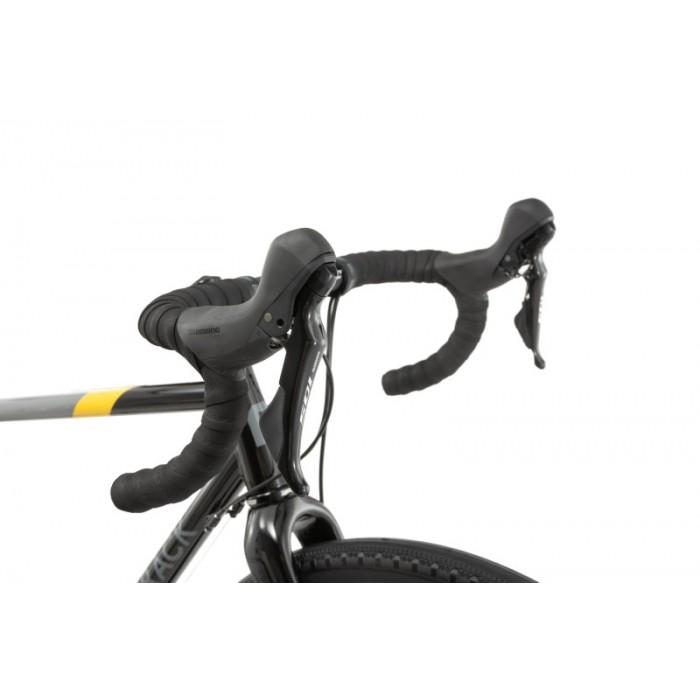

Handlebars:	RITCHEY COMP STREEM II drop bar, 31.8 mm, 4.7° backsweep
Saddle:	BOMBTRACK COMP saddle
Cassette:	SHIMANO 105 CS-R7000 11-speed cassette, 11 - 32 T
Brakes:	SHIMANO 105 BR-R7070 flat-mount hydraulic disc brakes with 160 mm rotors
Tires:	WTB BYWAY folding tire, 650B x 47C
Bottom Bracket:	FSA 386EVO T47 BB for T47 x 86 mm
Weight:	Approx. 10.4 kg (size M)

All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.

For all warranty claims, please contact our Warranty Team at warranty@citygrounds.com. So that we can help you in a timely manner, make sure to include the following:

• 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
• 2. Brief description of the claim
• 3. Photographs
• 4. If the item is a bike or frame, include the serial number

We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!

Warranty does not apply to the following:

• • Any part of a product that has been installed, altered, repaired, or misused
• • Damage from unintended style of riding, abuse, neglect, accident, and racing
• • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
• • Failure to provide regular maintenance of any product

Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.

Note: Warranty is for original owner only.
