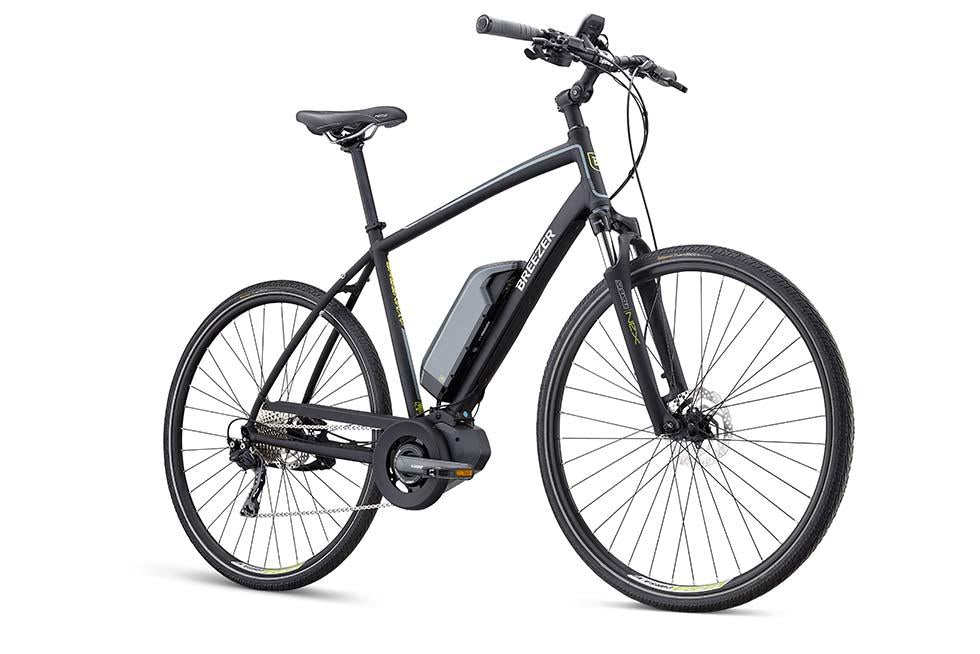

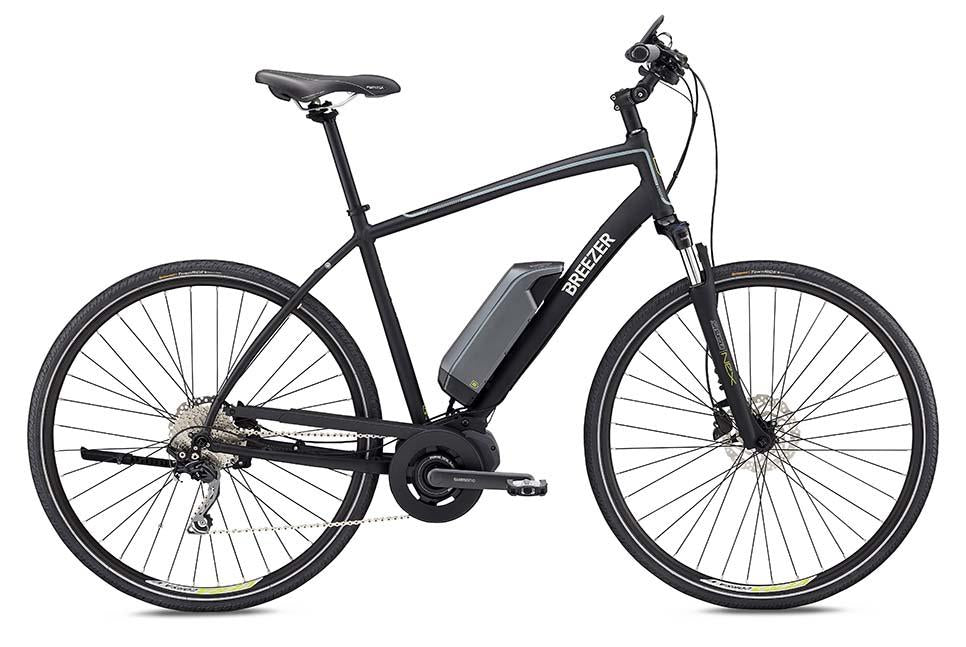

Breezer Greenway Electric Bike 2018

Built on the same design principles as our Liberty series, the Greenway bikes offer versatility and unsurpassed ride quality, with the addition of a Shimano STEPS electric pedal assist system. If you’re looking for a bike to make commuting a Breeze, the Greenway is here to lend you some pedal power. Whatever your inspiration or destination, you’ll arrive with energy to spare and a little less sweat on your brow.

Frame:	Breezer D’Fusion Hydroformed Aluminum, Integrated Head Tube, Shimano STePS Interface, Breeze-In Dropouts, Apex Disc Mount
Fork:	Suntour NEX Disc LO 700C Coil, Travel: 63mm, SKTM steerer
Crank:	Shimano STePS, 38T
Shifters:	Shimano SW-E6010 assist controller (left) / Shimano Deore 10-Speed (right)
Headset:	FSA 1 1/8”, Fully Integrated, ACB-Sealed, 6.5mm Aluminum Top Cover
Wheelset:	Shimano HB-M3050 CenterLock Disc QR Front, Shimano FH-M3050 CenterLock Disc QR Rear, 36H Hubs, Vera DPD28 Aluminum Double-Wall SSE Rims
Seatpost:	6061 Aluminum, 27.2mm, Forged alloy head, offset 12mm

Stem:	3D-Forged 6061 Aluminum, 31.8, 0-60 Degree Adjustable
Handlebars:	Ergo Lite 6061 Aluminum, 31.8, 630mm Wide, 15mm Rise, 9 Degree Sweep
Saddle:	Selle Royal Freccia HRC / Bi-Color Design
Cassette:	Shimano Tiagra CS-HG500 10-Speed, 11-34T
Brakes:	ShimanoM315 Hydraulic Disc Brake, 160mm Front, 160mm Rear
Tires:	Continental Town Ride Reflex 42-622, Puncture Protection
Drive Unit:	Shimano STePS E-6002 mid-motor, 250W rated power
Battery:	Shimano STePS, 418Wh w/charger
Display:	Shimano STePS SC-E6010, Center Mounted
Weight:	approx. 20.33kg / 44.81lbs

All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.

For all warranty claims, please contact our Warranty Team at warranty@citygrounds.com. So that we can help you in a timely manner, make sure to include the following:

• 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
• 2. Brief description of the claim
• 3. Photographs
• 4. If the item is a bike or frame, include the serial number

We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!

Warranty does not apply to the following:

• • Any part of a product that has been installed, altered, repaired, or misused
• • Damage from unintended style of riding, abuse, neglect, accident, and racing
• • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
• • Failure to provide regular maintenance of any product

Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.

Note: Warranty is for original owner only.
