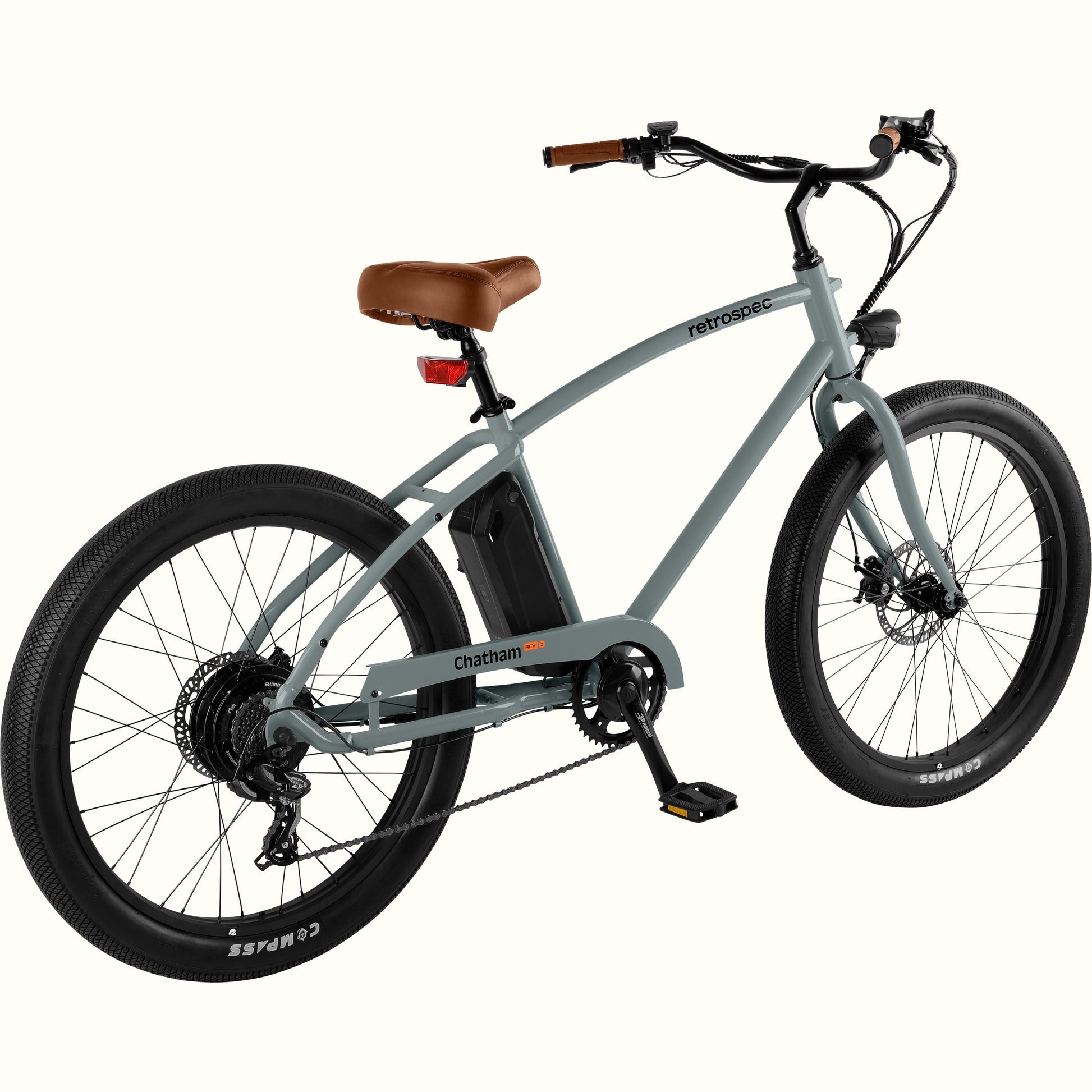

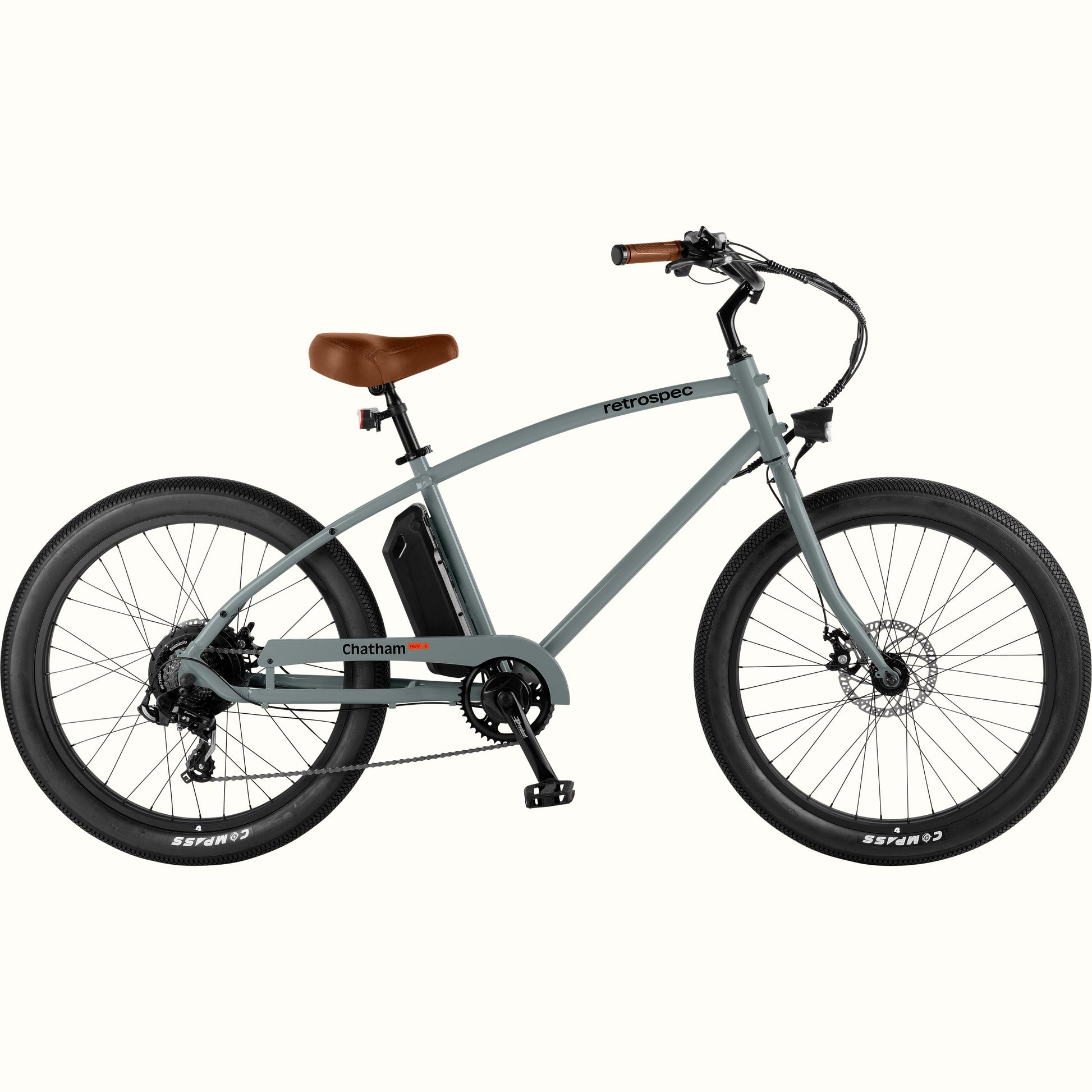

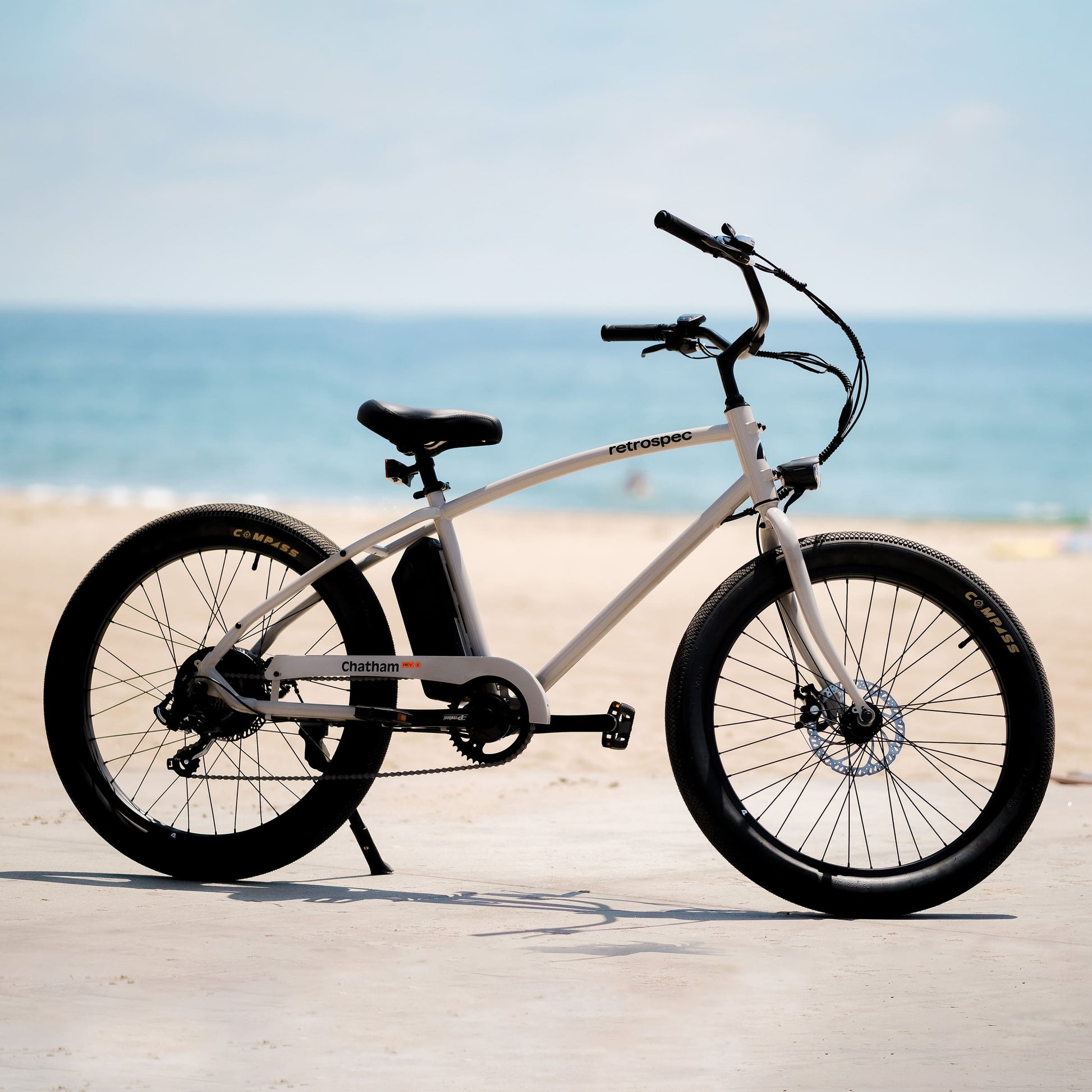

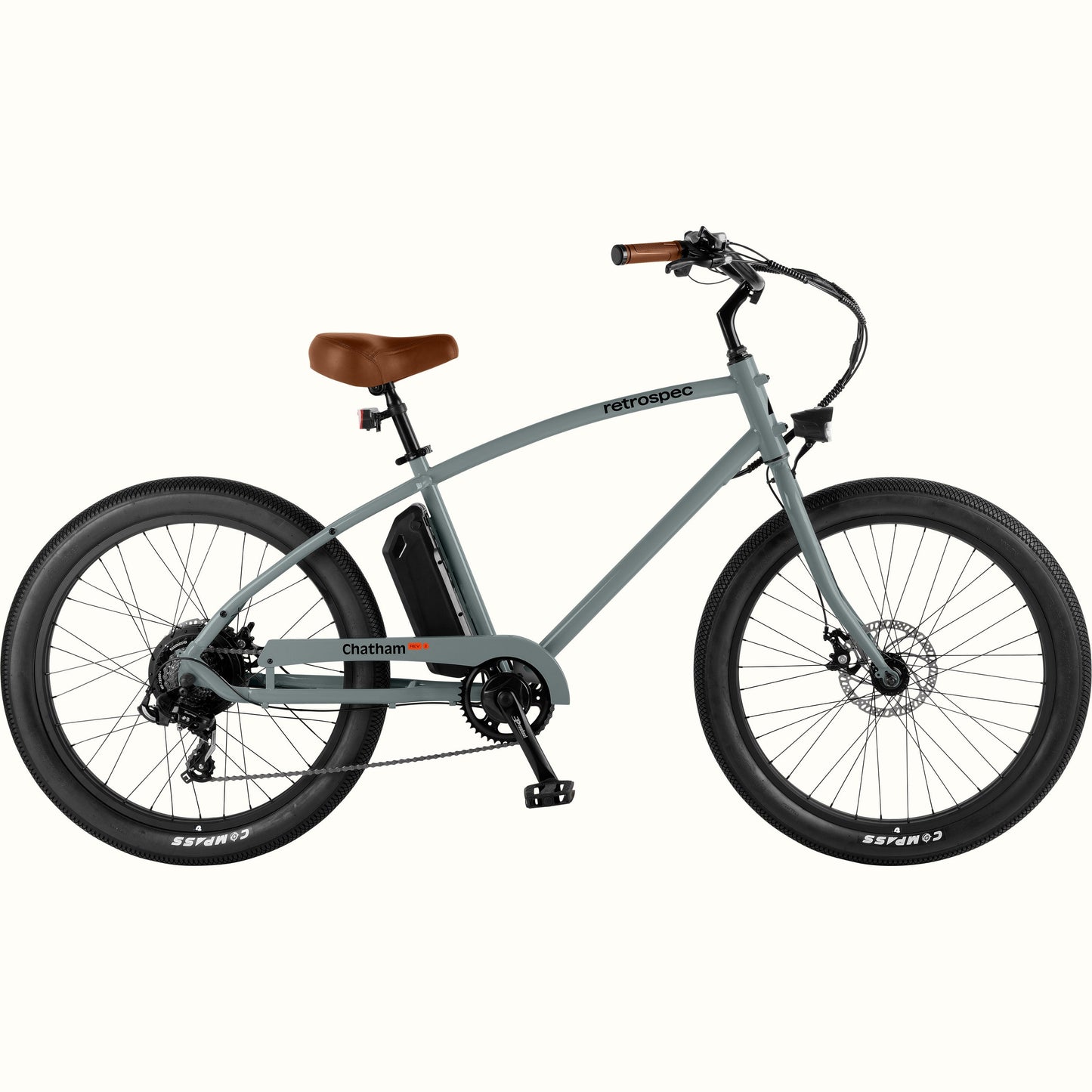

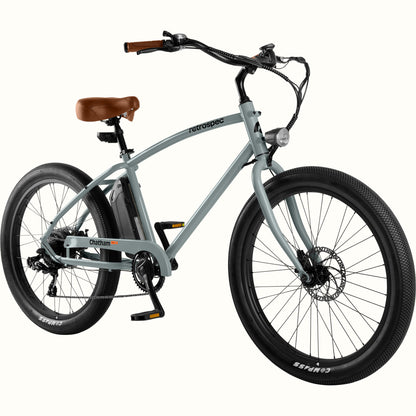

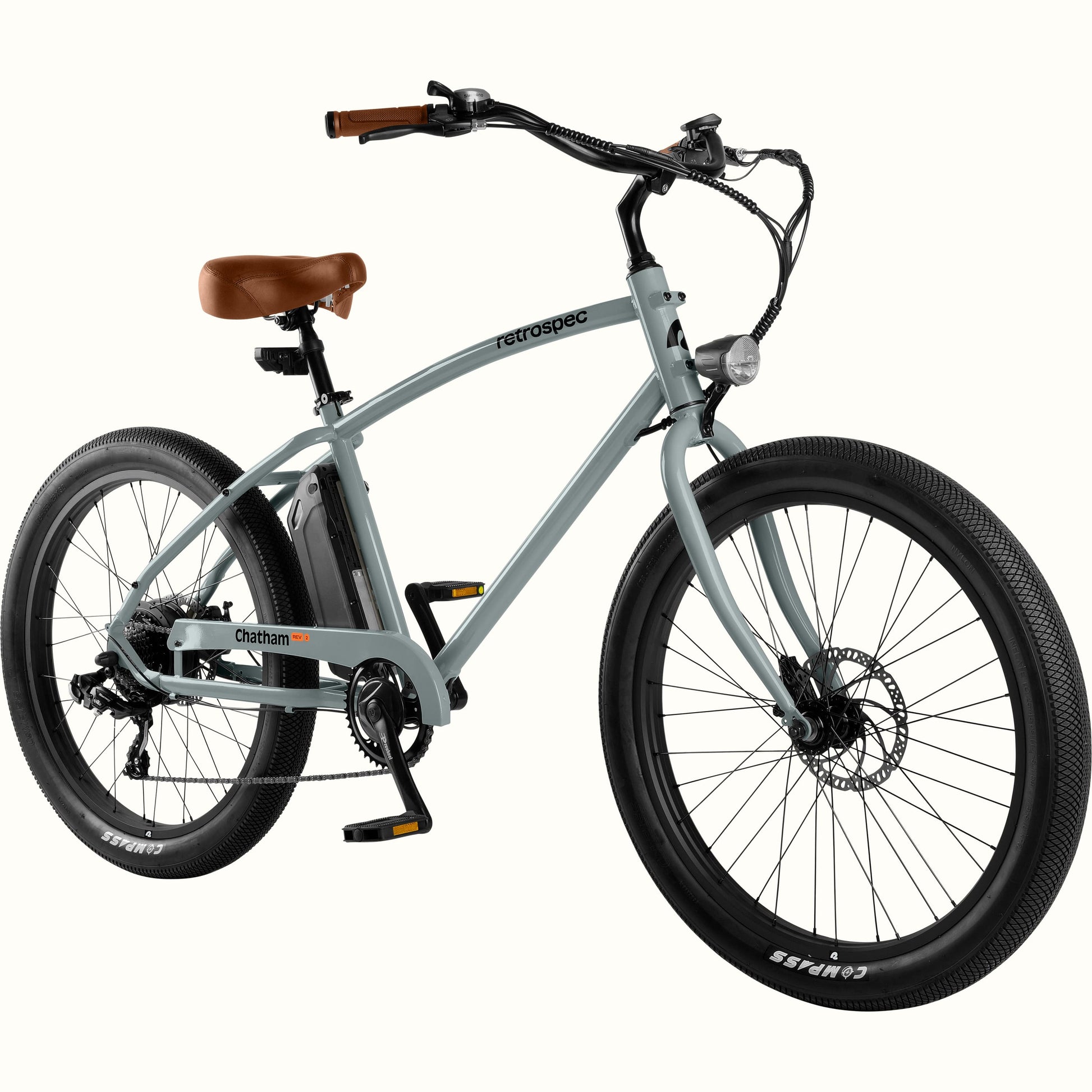

Chatham Rev 2 Beach Cruiser Electric Bike
Frameset:
Sizes: 18" Step Over
Material: Steel
Dropouts: 1x rear fender eyelets, rear rack mounts,
Decals
Fork: Steel
Drivetrain:
Derailleur - Rear: Shimano Tourney 7 speed
Shifter: Shimano Tourney 7 speed
Crankset: 42T alloy
Chain: KMC Z7
BB: JIS square taper cartridge
Freewheel/Cog: Shimano 14-34T
Wheelset:
Rims: Alloy 36H for disc brake
Hubs: Alloy bolt on 17mm nut
Spokes: 13G/2.3mm w/brass nipples
Tires: 26x3.0
Components:
Headset: Threaded 11/8"
Brakes: Tektro mechanical with 180mm rotors and semi-metalic pads [OEM Replacement Pads: Tektro P20.11/Resin for 2-Piston (QBP#BR7193). Other pads that will fit: Tektro E10.11/Organic, A11TS/Sintered, A10YS.]
Handlebars: Alloy cruiser
Grips: Comfort with alloy lock rings
Stem: Alloy quill
Saddle: Comfort Cruiser
Seatpost: Aluminum 28.6mm diameter, 350mm length
Seatpost Clamp: Alloy QR
Pedals: PP Platform 9/16"
Extras:
Kickstand: Rear mount, adjustable, aluminum alloy
Axle (buddy) Pegs: n/a
Rear Carrier: n/a
Bell: n/a
Light(s): Battery operated front and rear lights
Fenders: n/a
Chaincover: Full Coverage
Basket: n/a
Bottle Cage: n/a
Tools: 2/3/4/5/6mm hex wrench; 8/10/15/17mm open wrench; 13g spoke wrench
Carton
Weight - Bike (assembled w/battery): 59lbs.
Weight - Max Rider: 350lbs / 158kgs not including bike weight.
Class: Class 2: pedal-assist and/or throttle-assisted, 20 mph max.
E-Power System:
Motor: 350W geared
Torque: 55Nm
Battery (w/key & slide in/out housing): 36V 360Wh
Charging Cycles: 500
Charger: Retrospec 2A
Modes: PAS/Thumb throttle Left side , cadence sensor

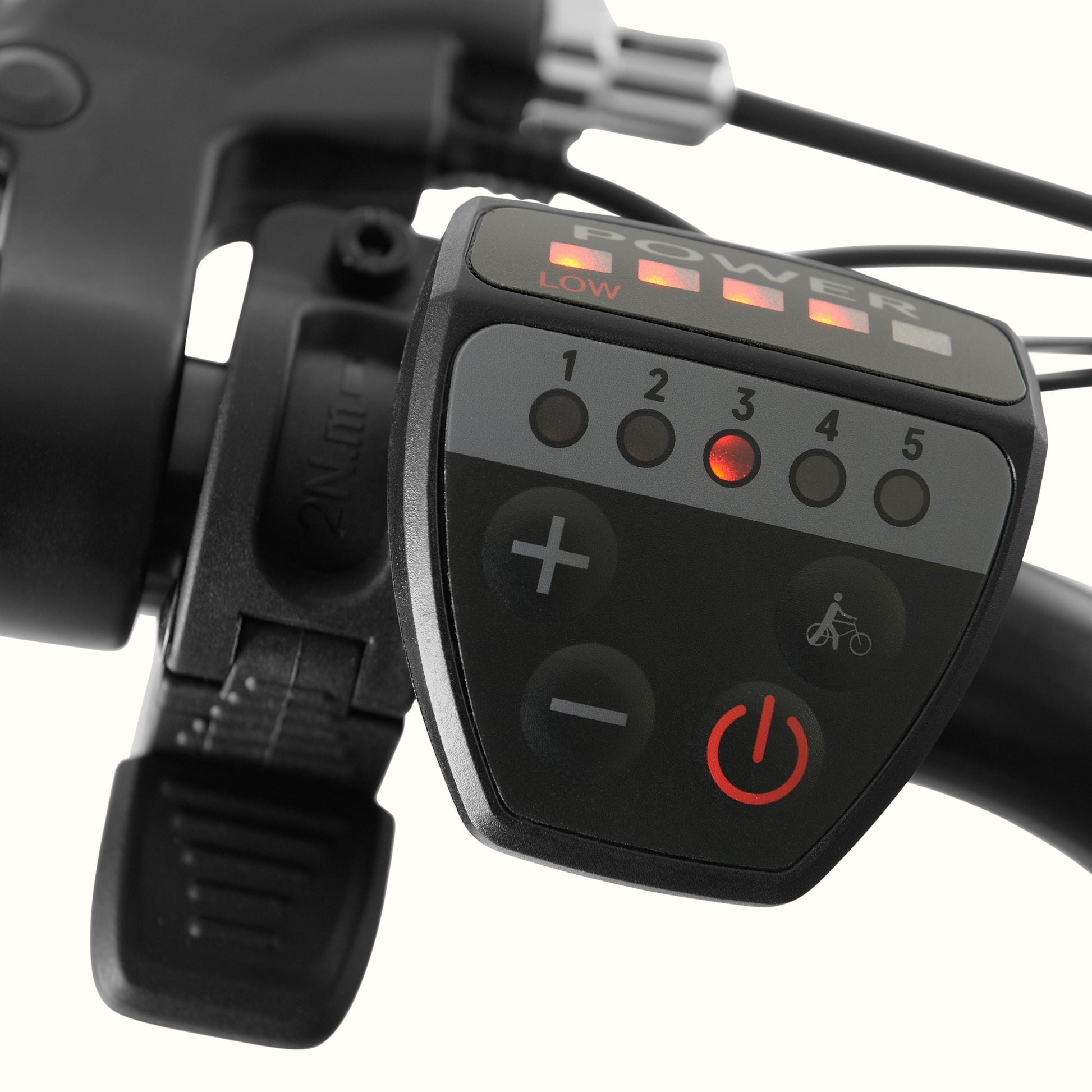

Display: LED with 5 levels of assist, anytime throttle and walk mode
Controller
Retrospec: 18Amp
Charge Time (empty to full, estimated, could be longer): Approximetly 4.5hrs.
Watt Hours (Wh): 360Wh
Range Conservative (@ 1mi = 20watt hours): 25+
Range - Miles: 360Wh: 38+
