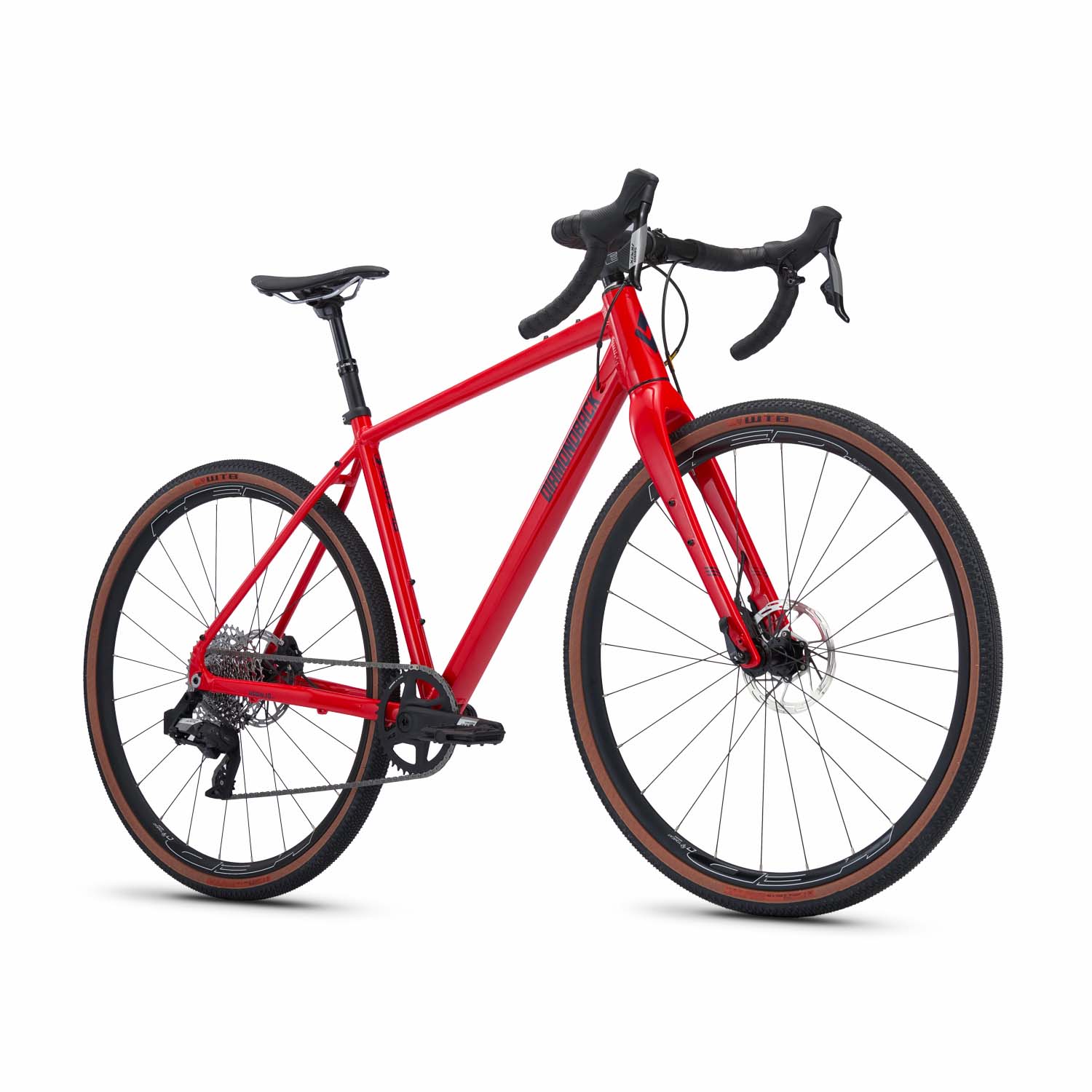

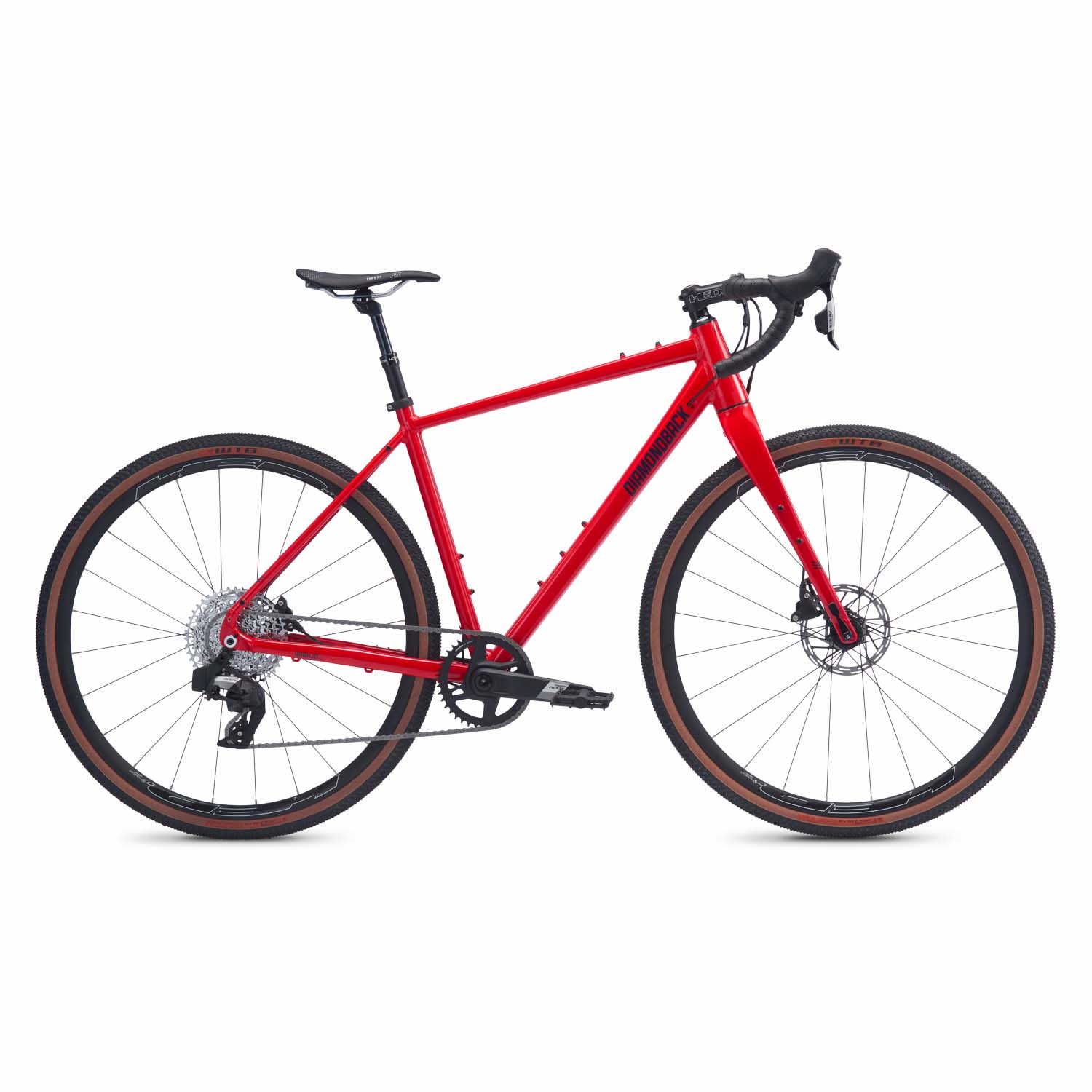

Diamondback Haanjo 5 Gravel, Apex ETAP, Red
You’re lost. And that’s a good thing because the Diamondback Haanjo 5 is a gravel bike designed to help you get off the beaten track. That’s why we built it around our trustworthy 6061 alloy frame and carbon fork with thru-axles front and rear. The path off-road is rarely flat and smooth. Accordingly, we outfitted this beast with plenty of gears as well as HED Tomcat wheels with grippy WTB Vulpine 700×40c tires. Finally, we’ve updated this ride to include SRAM Apex AXS eTap 1×12 drivetrain components and a Kind Shock dropper post, giving you more control when you need it. Looking for your next great adventure? When the road turns bad, this bike gets really good.
SPECS
| Brand | Diamondback |
| Year | 2023 |
| Model | Haanjo 5 |
| Color | Red |
| Style of Bike | Gravel |
| Frame |
DB Alloy Gravel Frame, Endurance Geometry, Fully Butted 6061-T6 Aluminum Formed Top Tube, Tapered Headtube, Flat Mount Disc, 142x12mm Thru-axle, Top Tube Bag Mounts, w/Replaceable Hanger |
| Fork |

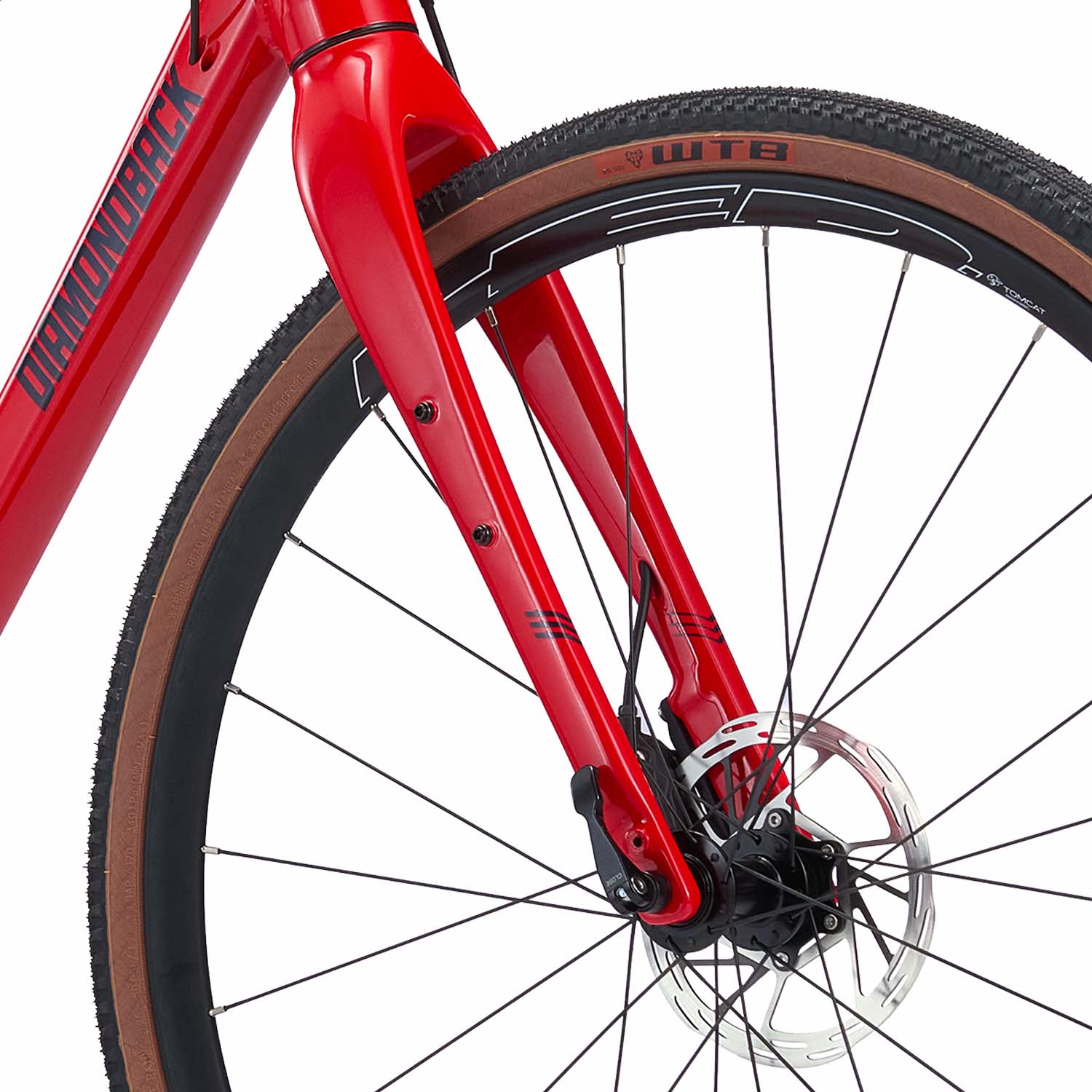

DB Gravel Performance, Full Monocoque Carbon, Carbon 12mm Thru Axle Drop Outs, Flat Mount Disc ready, w/Tapered Steerer Tube |
| Headset |
FSA No.42, Sealed Cartridge |
| Cranks |

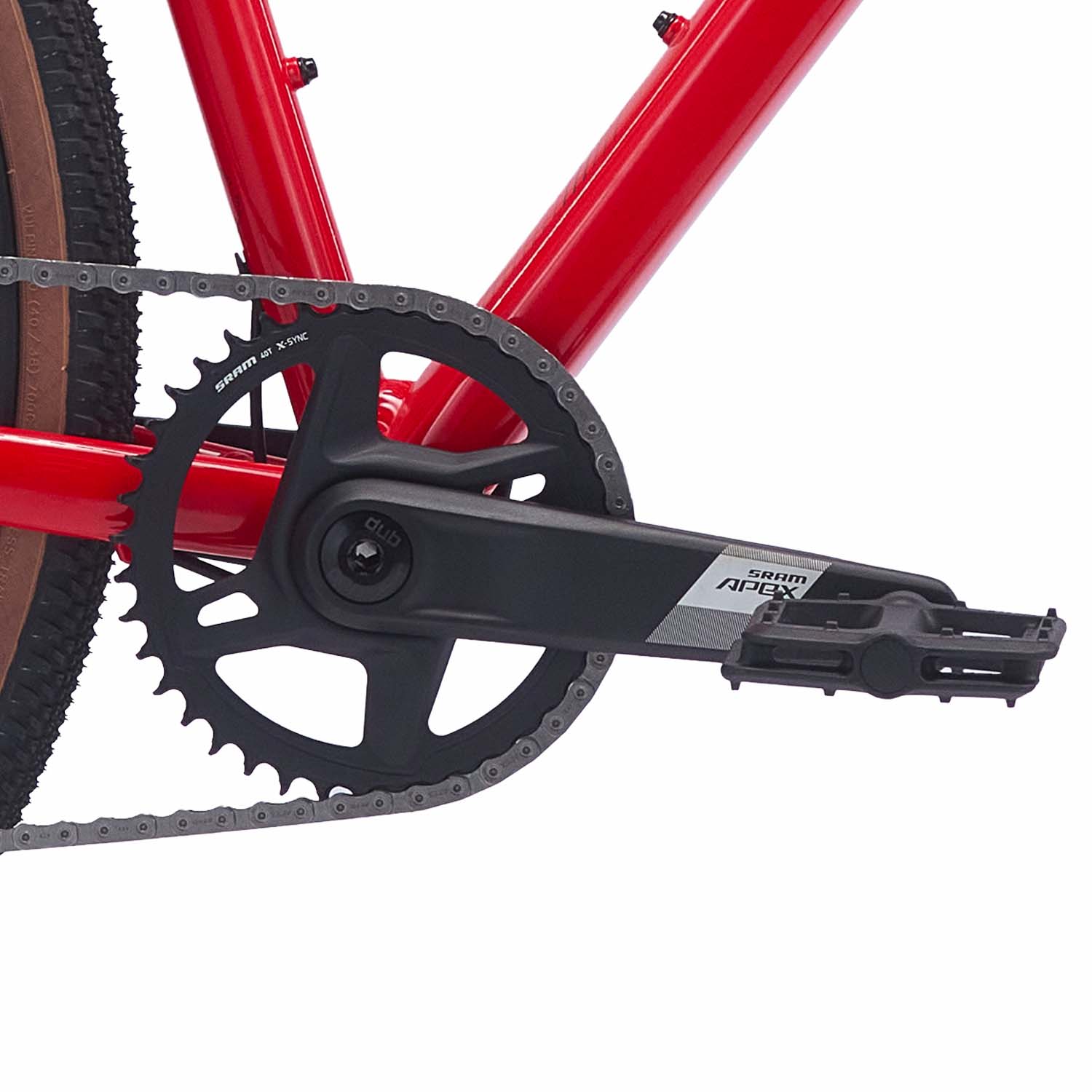

SRAM Apex DUB Wide, 40T |
| Bottom Bracket |
SRAM DUB BSA |

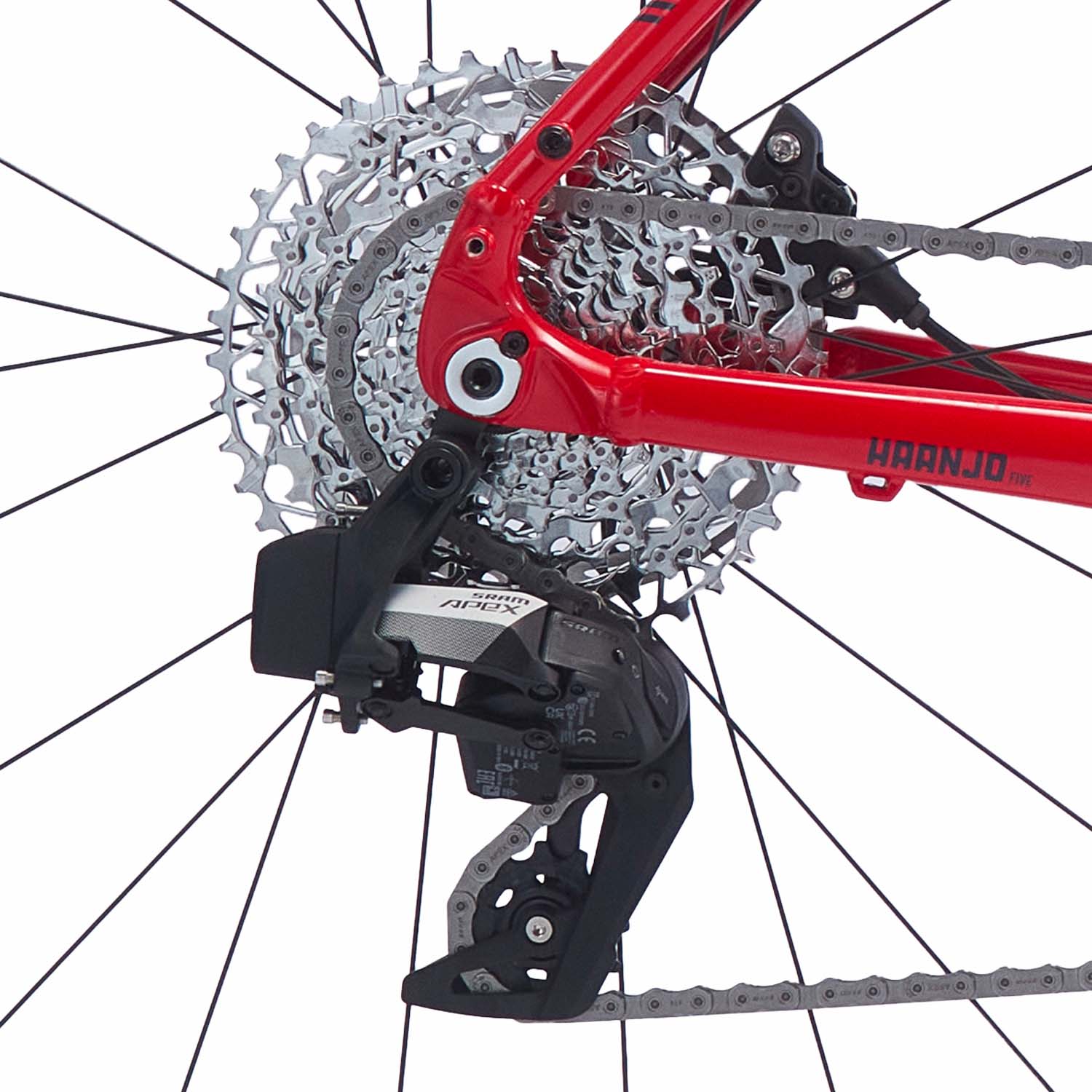

| Rear Derailleur | SRAM Apex AXS Eagle eTap, 12 Speed |

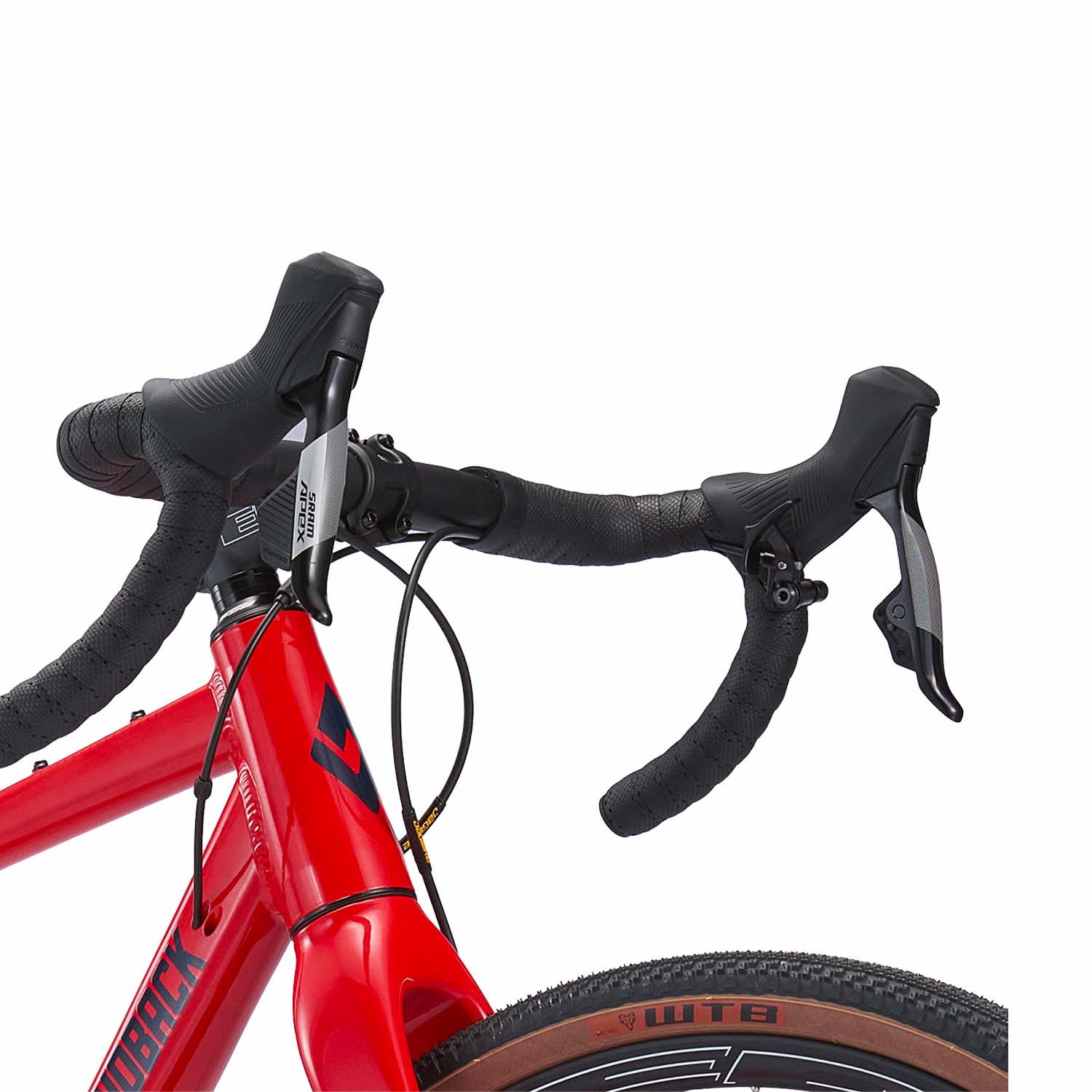

| Shifter | SRAM Apex AXS eTap, 12 Speed |
| Cogset | SRAM PG-1230 Eagle 11-50T, 12 Speed |
| Chain | SRAM Apex |
| Front Hub | 24h Aluminum Sealed Cartridge, Center Lock, 12mm Thru-axle |
| Rear Hub | 24h Aluminum Sealed Cartridge, Center Lock, 142x12mm Thru-axle, Cassette |
| Spokes | 2.0/1.8/2.0 Butted Stainless Steel |
| Rims | HED Tomcat Disc, 24h, 25mm Internal Width, Taped for Tubeless |
| Tires | WTB Vulpine, Dual DNA Compound, TCS Light Tubeless Casing 700x40c |
| Brake Levers | SRAM Apex Hydraulic |
| Pedals | DB Resin Gravel Platform |
| Handlebar | HED, 7050 Aluminum 12 Degree Flare, 31.8mm Bar Bore |
| Grips | Diamondback Endurance Gel Tape |
| Stem | HED, 6061 Aluminum 3D Forged, +/-7° Rise, 31.8 Bar Bore |
| Seat | WTB Gravelier, Cromoly Rail, 142x250 |

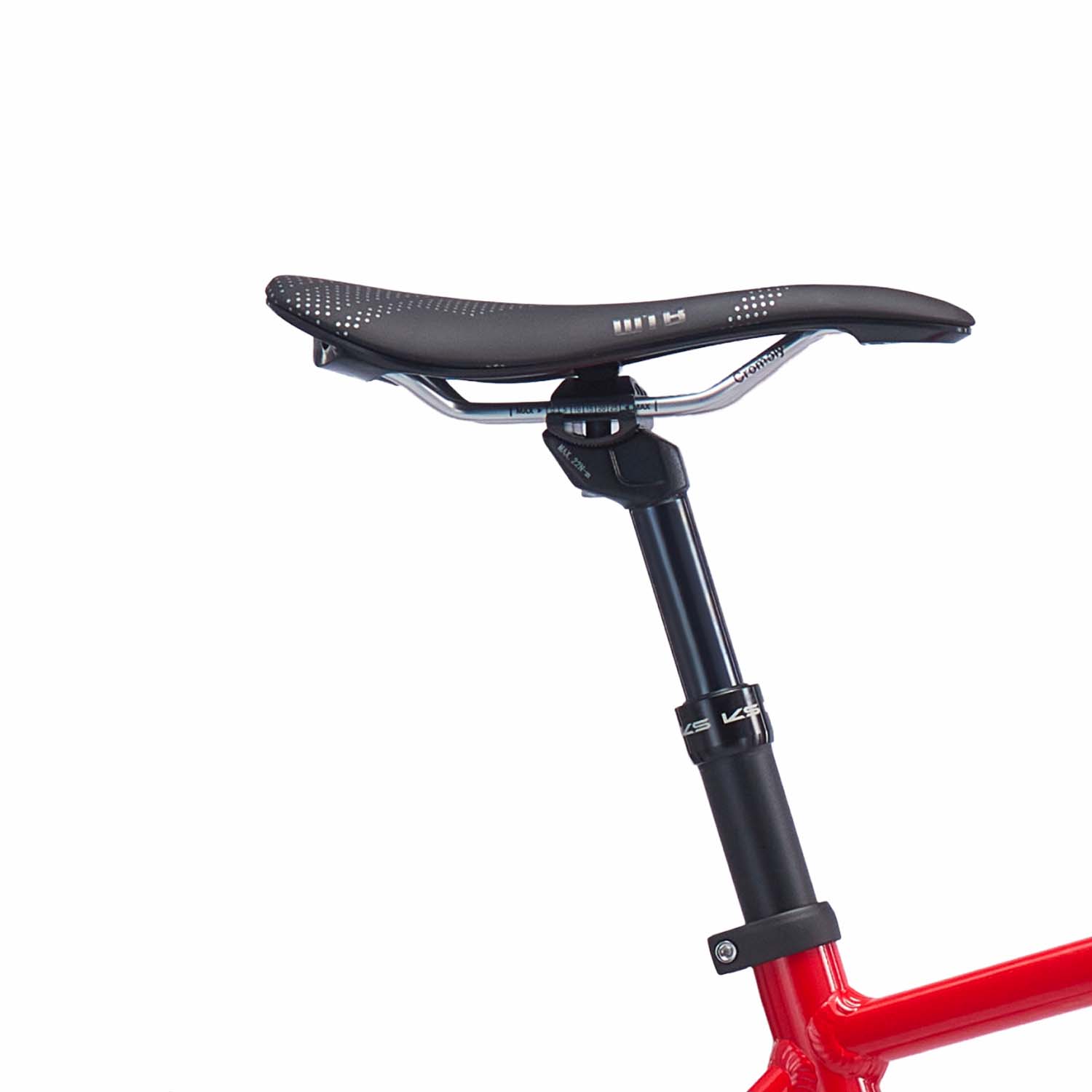

| Seatpost | Kind Shock eTENi 27.2 Dropper, 65mm (XS,SM,MD) 100mm (LG,XL) travel |
| Extras | Tool Kit, Tubeless Valves, Frame / Chainstay Protector |
| Brakes | SRAM Apex, Flat Mount Hydraulic Disc, w/160mm F / 160mm R, Rotors |
